Technical Specs:

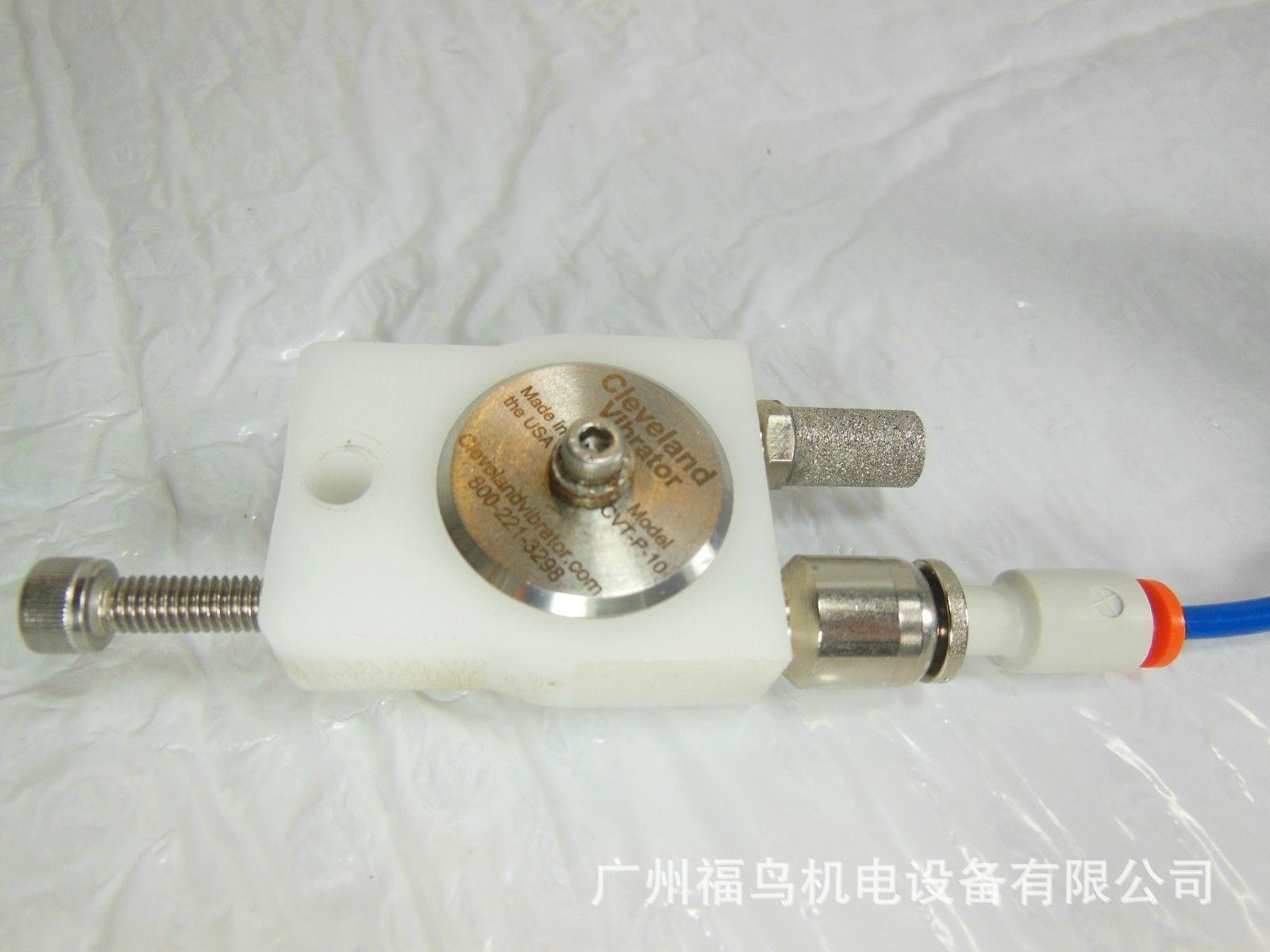

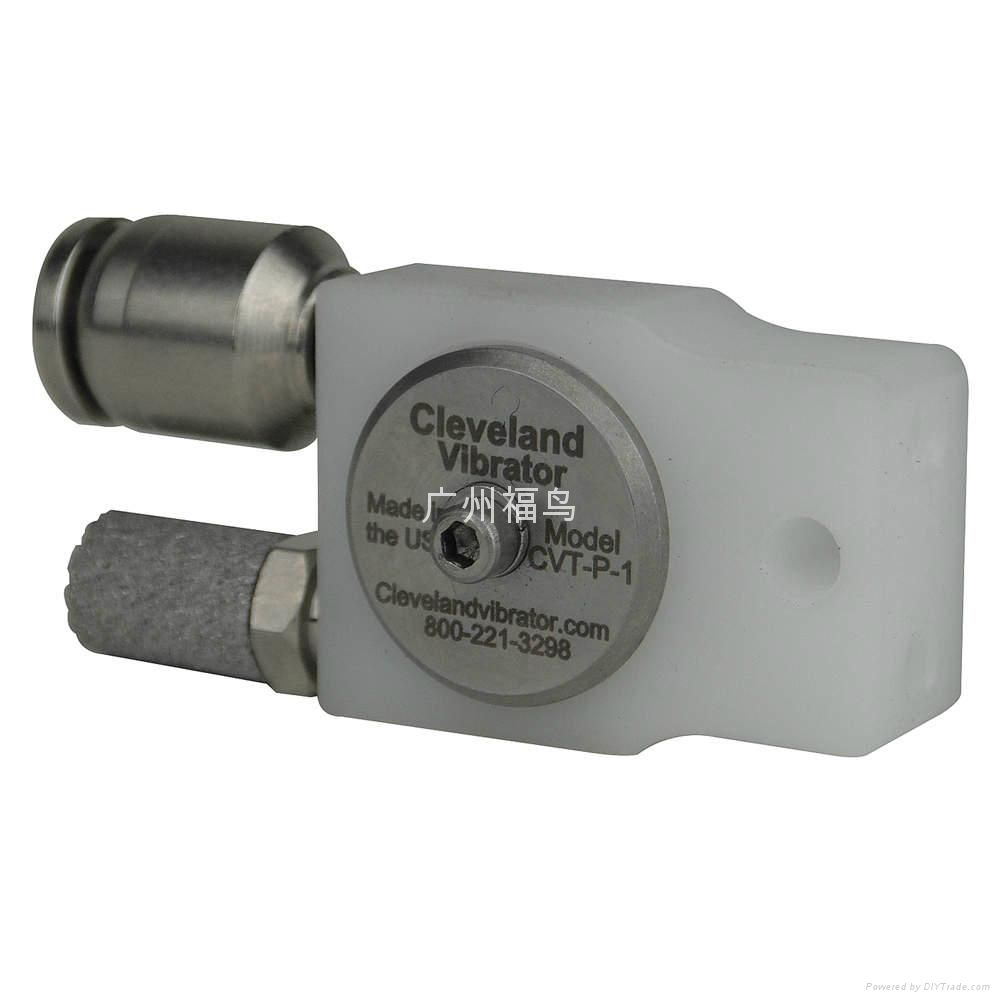

• Item: Vibrator
• Type: Turbine
• Power Source: Pneumatic/Air
• Voltage: Non-Electric
• Phase: Non-Electric
• Force (Lb.): 25
• Duty: Continuous
• Max. Material in Bin (Lb.): 250
• Speed @ 60 psi (VPM): 20,500
• Speed @ 80 psi (VPM): 20,900
• Speed (VPM): 20,900
• CFM @ 60 psi: 1.1
• CFM @ 80 PSI: 1.4

• Inlet Port (In.): #10-32 UNF
• Outlet Port (In.): #10-32 UNF
• Muffler: Included
• Mounting: Any Position
• Mounting Plate: No
• Enclosure: 304 Stainless Steel
• Housing: Acetal Plastic
• Lubrication: Not Required or Recommended
• Overall Height (In.): 1-9/32
• Overall Length (In.): 1-1/2
• Overall Width (In.): 31/32
• Application: Small Bins and Hoppers, Parts Tracks, Packaging Feeders, Food and Pharma Clean Room, Small Screeners, Chutes and Pipes, Packers
• Includes: Grade 5 Mounting Hardware and Manual

产品规格︰ 型号: CVT-P-10
