供应CLEVELAND振动器(VM-25)

供应CLEVELAND振动器(VM-25)

型号︰VM-25

品牌︰CLEVELAND

原产地︰美国

单价︰-

最少订量︰-

现在查询

产品描述

Technical Specs:

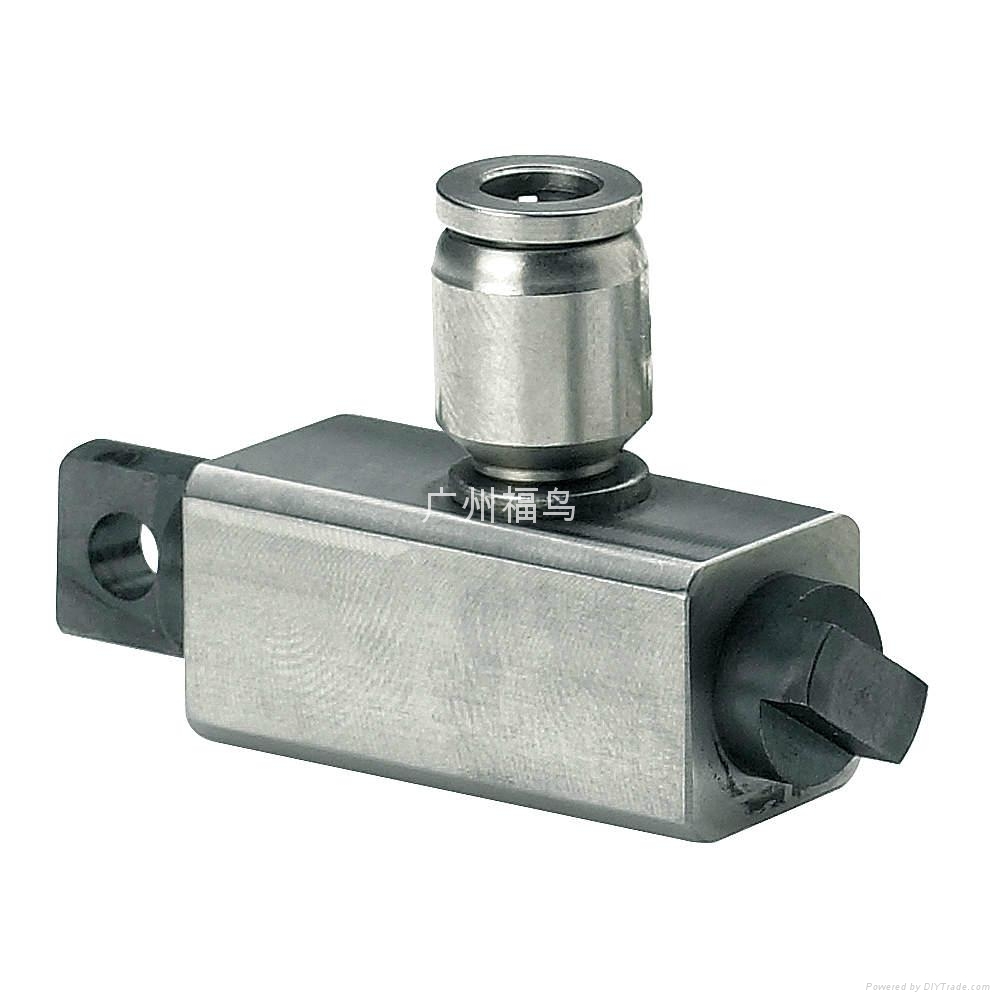

  • Item: Vibrator
  • Type: Piston
  • Power Source: Pneumatic/Air
  • Voltage: Non-Electric
  • Phase: Non-Electric
  • Force (Lb.): 15
  • Force: Linear
  • Duty: Intermittent
  • Max. Material in Bin (Lb.): 100 to 175
  • Speed @ 80 psi (VPM): 16,000
  • Speed (VPM): 16,000
  • CFM @ 80 PSI: 2
  • PSI: 80
  • Inlet Port (In.): 1/4
  • Outlet Port (In.): #10-32 Tapped Exh
  • Muffler: 1EJX3
  • Mounting: Any Position
  • Housing: 304 Stainless Steel
  • Lubrication: Suggested
  • Overall Height (In.): 1-1/4
  • Overall Length (In.): 2-3/16
  • Overall Width (In.): 5/8
  • Application: Manufacturing, Chemical Plants, Pharmacuetical, Packaging
  • Includes: Grade 5 Mounting Hardware and Manual

产品规格︰ 型号: VM-25

主要市场︰ 业务QQ: 2543525125, 2054518018, 532560858.

产品图片
