Technical Specs:

• Item: DC Gearmotor
• Voltage: 90VDC
• Shaft Orientation: Parallel
• Reversible Shaft Output: No
• Nameplate RPM: 22
• Max. Torque: 280 in.-lb.
• Overhung Load: 150 lb.
• Input HP: 1/8
• Gear Ratio: 82:1
• Full Load Amps: 1.41
• Enclosure: TENV
• Thermal Protection: None
• Max. Ambient Temp.: 40 Degrees C
• Rotation: Reversible

• Mounting: All Position
• Motor Type: DC

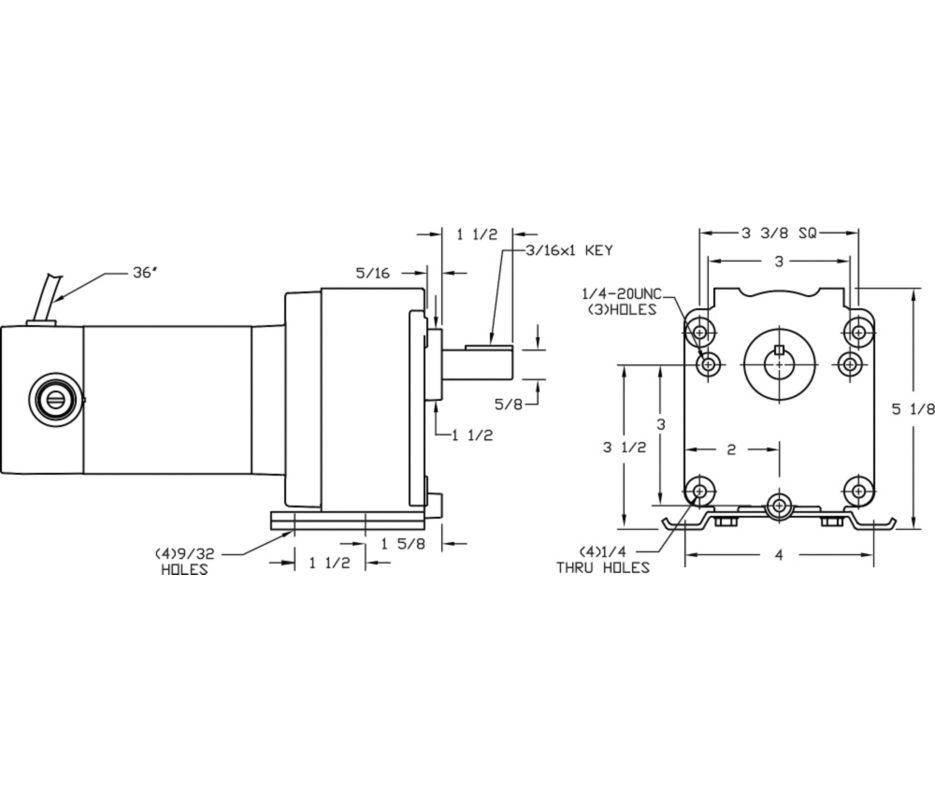

• Length Less Shaft: 10-1/8"
• Overall Length: 11-5/8"
• Bearings: Needle Roller and Thrust Balls on Case, Ball on Motor
• Lubrication: Permanent Heavy Fluid Gear Oil
• Brushes: Externally Replaceable
• Gear Material: Hardened Steel
• Gear Case: Die Cast Aluminum
• Seals: On Input and Output Shaft
• Housing Material: Die Cast Aluminum
• Replacement Brushes: 6YHY6
• RPM Range: 16 to 30

产品规格︰ 型号: 4Z130, 4Z130C, 4Z130B, 4Z130A
