产品描述
| Item |
|
PSC Blower |
| Wheel Dia. (In.) |
|
3-3/4 |
| Wheel Width (In.) |
|
1-7/8 |
| CFM @ 0.000-In. SP |
|
133 |
| CFM @ 0.100-In. SP |
|
128 |
| CFM @ 0.200-In. SP |
|
126 |
| CFM @ 0.300-In. SP |
|
119 |
| CFM @ 0.400-In. SP |
|
112 |
| CFM @ 0.500-In. SP |
|
105 |
| Voltage |
|
230 |
| Hz |
|
50/60 |
| Phase |
|
1 |
| Full Load Amps |
|
0.33 |
| RPM |
|
2880 |
| Bearing Type |
|
Ball |
| Motor Type |
|
Permanent Split Capacitor |
| Motor Enclosure |
|
Open |
| Motor Insulation |
|
Class B |
| Thermal Protection |
|
Auto |
| Lead Length (In.) |
|
13 |
| Conduit Box |
|
Yes |
| Ambient Temp. (Deg. F) |
|
104 |
| Max. Inlet Temp. (Deg. F) |
|
104 |
| Inlet Dia. (In.) |
|
3-1/4 |
| Outlet Height (In.) |
|
2-1/2 |
| Outlet Width (In.) |
|
2-9/16 |
| Overall Height (In.) |
|
6-9/16 |
| Overall Width (In.) |
|
5-5/8 |
| Overall Depth (In.) |
|
6-9/16 |
| Wheel Type |
|
Forward Curve |
| Drive Type |
|
Direct |
| Mounting |
|
All Position |
| Housing Finish |
|
Gray Enamel |
| Housing Material |
|
Rolled Steel |
| Agency Compliance |
|
UL Recognized US and Canada (E47479), CE |
| Replaces |
|
2C915 |
| Includes |
|
Discharge Mounting Flange |
产品规格︰
型号: 1TDP6(替代旧型号2C915, 2C915A)
主要市场︰
业务QQ: 2543525125, 2054518018, 532560858. 微信: tianmahd18922127186.

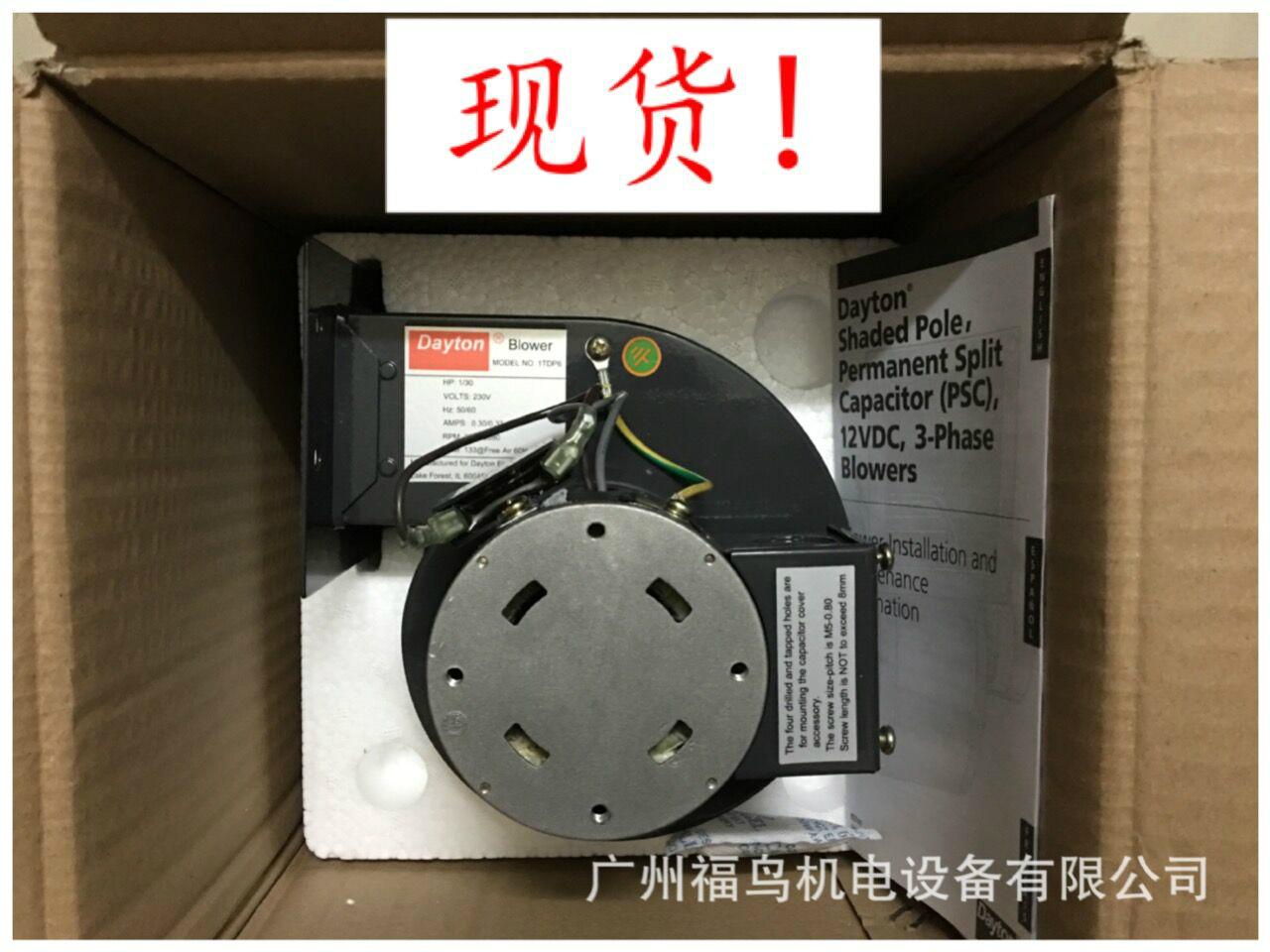

产品图片
