产品描述
| Item |
|
AC Gearmotor |
| Type |
|
Parallel Shaft |
| Voltage Rating |
|
115 |
| Phase |
|
1 |
| Hz |
|
60 |
| Shaft Orientation |
|
Parallel |
| Nameplate RPM |
|
50 |
| Full Load Torque (In.-Lbs.) |
|
6.0 |
| Starting Torque (In.-Lb.) |
|
4.5 |
| Overhung Load (Lb.) |
|
3.5 |
| Input HP |
|
1/70 |
| Gear Ratio |
|
65.6:1 |
| Full Load Amps |
|
0.75 |
| Enclosure |
|
Open |
| Thermal Protection |
|
None |
| Rotation |
|
CW |
| Mounting |
|
All Position |
| Motor Type |
|
Shaded Pole |
| Length Less Shaft (In.) |
|
3-3/4 |
| Shaft Dimensions (In.) |
|
5/16 x 3/4 |
| Brake |
|
Magnetic |
| Bearings |
|
Porous Bronze Sleeve on Both Case and Motor |
| Lubrication |
|
Grease Filled |
| Gear Case |
|
Zinc Die Cast with Steel Cover |
| Gears |
|
Sintered Steel/Phenolic |
| RPM Range |
|
31 to 50 |
产品规格︰
型号: 3M258, 52JD93
主要市场︰
业务QQ: 2543525125, 2054518018, 532560858.

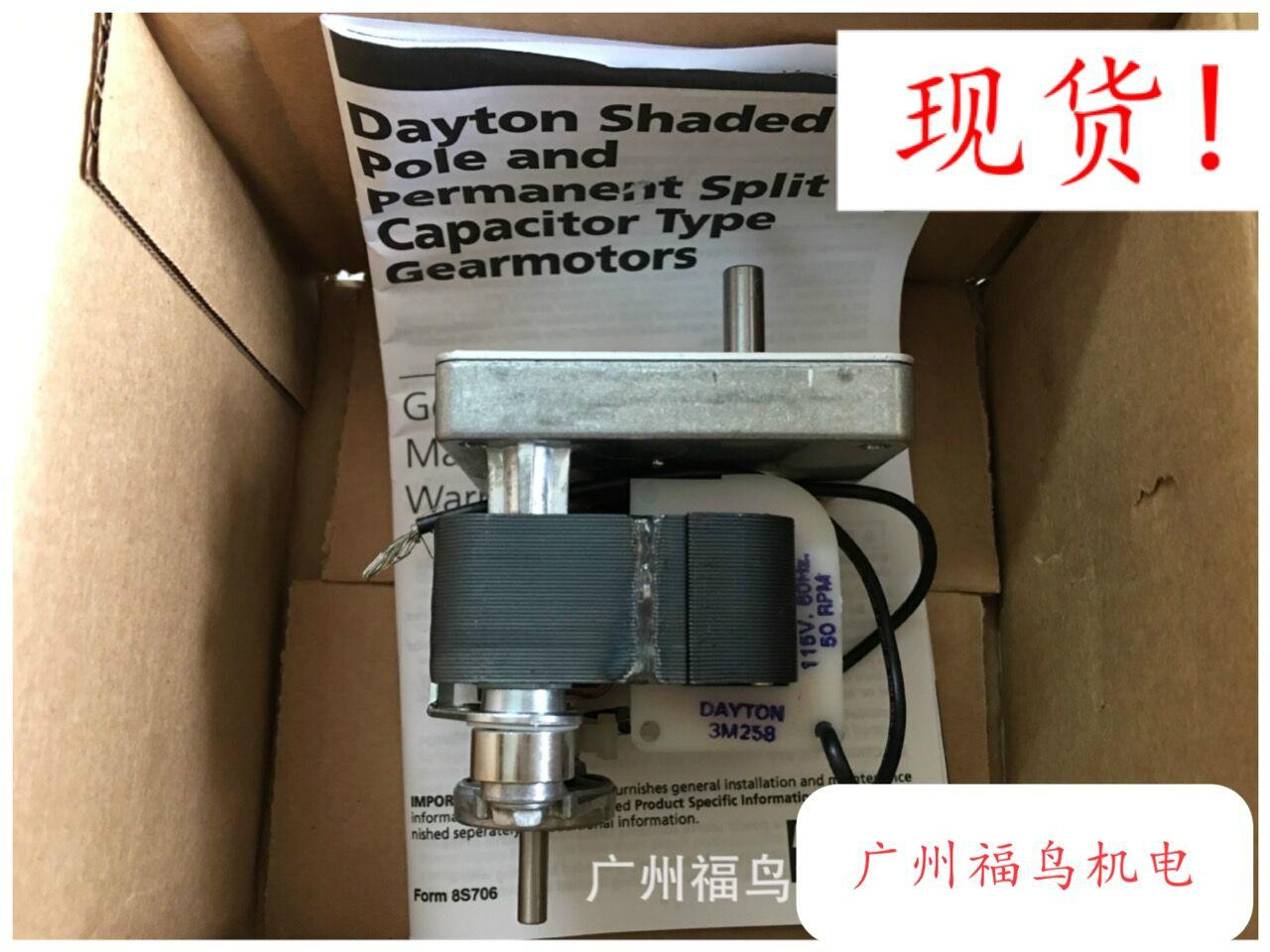

产品图片
